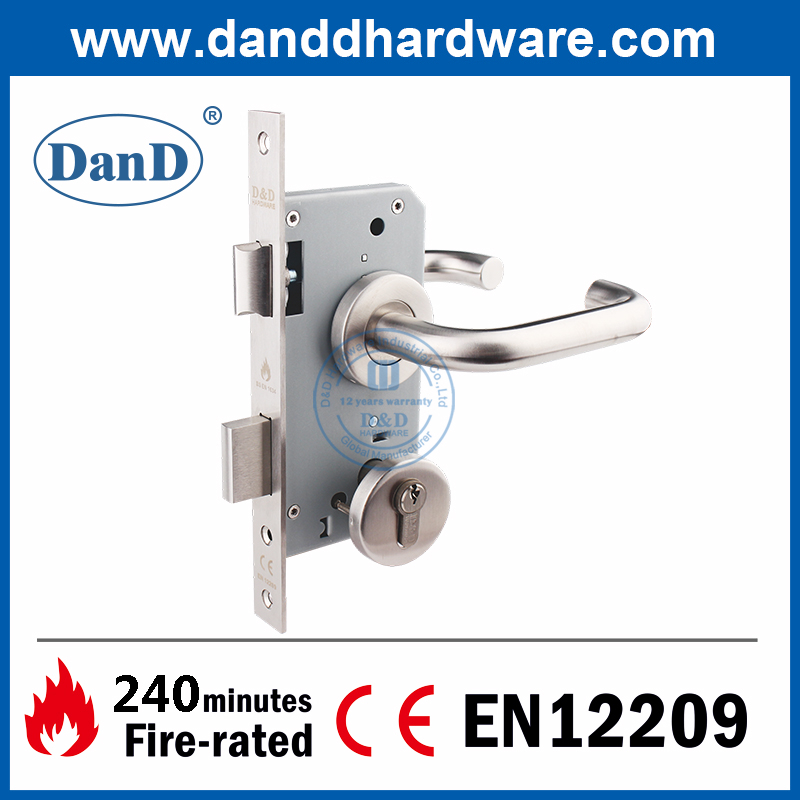

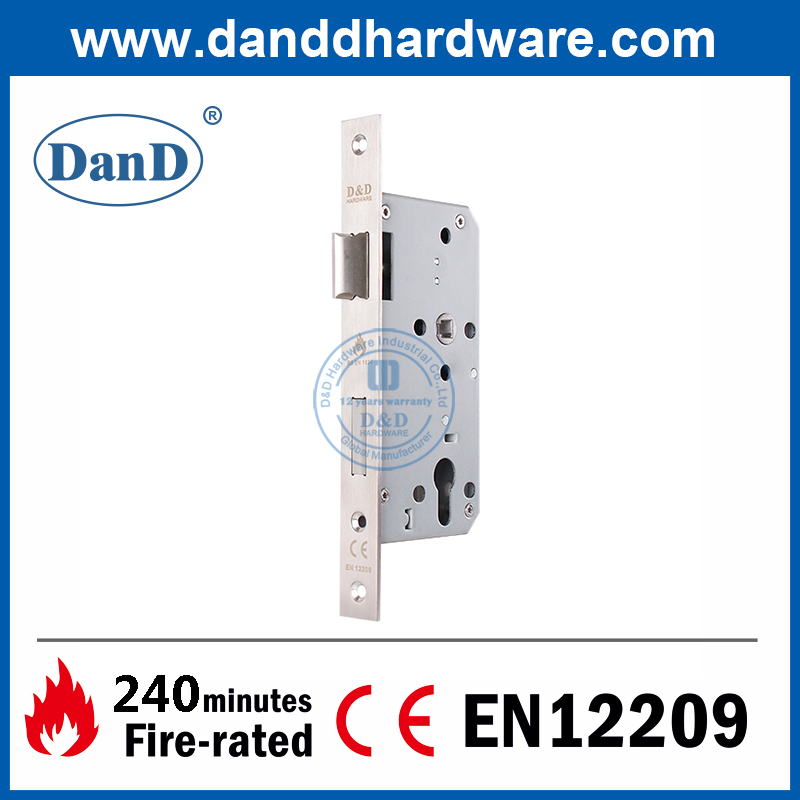

Euro Security SS304 CE Mortise Sash Fire Rated Door Lock-DDML009

Certification:CE EN12209 / DIN 18251 Grade 3, 200,000 test cycles ,EN1634: 240 Min fire rated
CE Classification:3X910G3BC20
DDML009 Backset available:55mm , 60mm , 70mm , 80 mm
DDML009 Backset available:72 mm

Material:Solid Stainless Steel 304 Latchbolt , Deadbolt, Follower, Forend, Strike plate, galvanize steel case
Forend & Strike plate:Square or Radius
Finish:SSS , PSS , PVD , PB, AB , AC, SC,PC
Payment Terms:T/T, L/C, D/P, Western Union
Port:Jiangmen /Guangzhou / Shenzhen , China
Suitable for:Entrance door of commercial or residential application
Suitable for doors:Wooden door, Metal door, Interior door, outer door, swing door etc
Cylinder can with draw both latch and deadbolt - offers convenience and safety combined with security.
Pierced to accept bolt through furniture and escutcheons at 38mm centres
Availability:
Quantity:
  • DDML009

  • D&D Hardware

Euro Security SS304 CE Mortise Sash Fire Rated Door Lock


SUS304 Euro Mortise Lock is a hot sale lock, it is durable and easy to use. As a professional lock manufacturer in China, we provide customers various quality Fire rated  Mortise Lock and they apply to different commercial of doors. The SUS304 CE Mortise Lock is one kind of our European Door Lock For Metal Door It has round head forend or square head forend. The material of European Door Hardware For Metal Door is stainless steel, so it can keep the original shape very well. The main body in solid can also keep smooth surface for a long time, not easy to rust and can wear resistant, these two characteristics greatly reduce the possibility of Fire Rated Door Lock become old and bad. The European Door Lock can also keep long-term lubrication, make you convenient to open and close the door. The European Door Hardware is smooth and easy to install and use, it can bring you high security and beauty.

For more information on specification please get in touch: sales@dndhardware.com


Product Overview


The D&D range of architectural locks is manufactured to the highest engineering standards and designed to offer a high price/ performance ratio.

They have been successfully type tested to all the requirements of BS EN 12209/ EN 1634, 240 minutes Fire Rate.

Solid stainless steel 304 latchbolts, deadbolts, followers, forend and strike plate provide enhanced durability and security.

Product name

Euro Security SS304 CE Mortise Sash Fire Rated Door Lock

Product Model

DDML009

Certification

CE EN12209 / DIN 18251 Grade 3,  200,000 test cycles ,

EN1634: 240 Min fire rated

CE Classification

3X910G3BC20

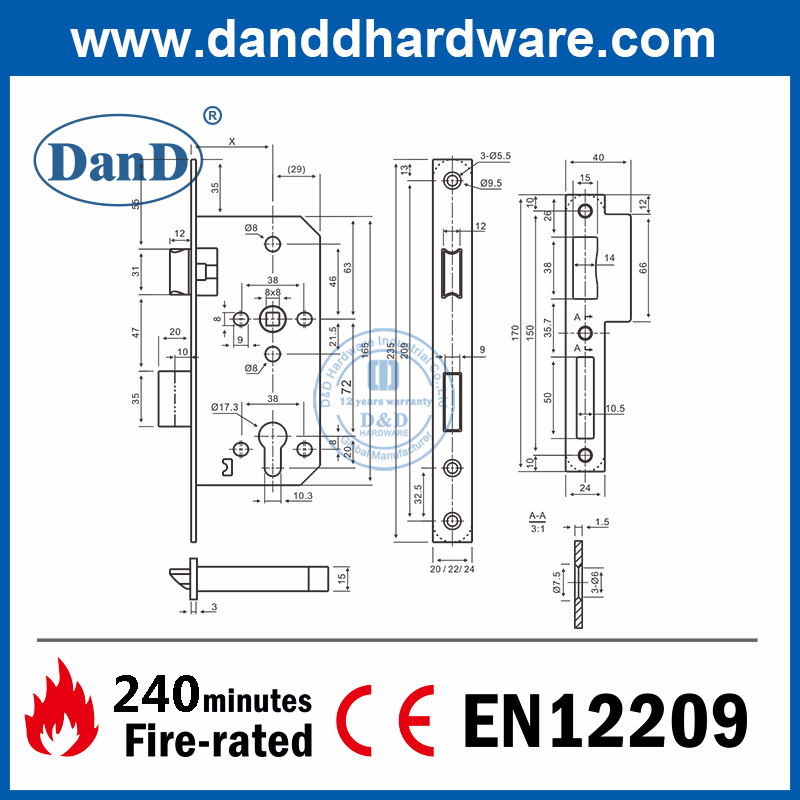

Backset  available

55mm , 60mm , 70mm , 80 mm

Distance

72 mm

Material

Solid Stainless Steel 304 Latchbolt , Deadbolt, Follower, Forend, Strike plate, galvanize steel case

Forend & Strike plate

Square or Radius

Finish

SSS , PSS , PVD , AB , AC

Suitable  For

Entrance door of commercial or residential application

Suitable For Door

Metal door, Wooden door, Interior door, outer door, swing door etc.

Cylinder can withdraw both latch and deadbolt - offers convenience and safety combined with security.
Pierced to accept bolt through furniture and escutcheons at 38mm centres

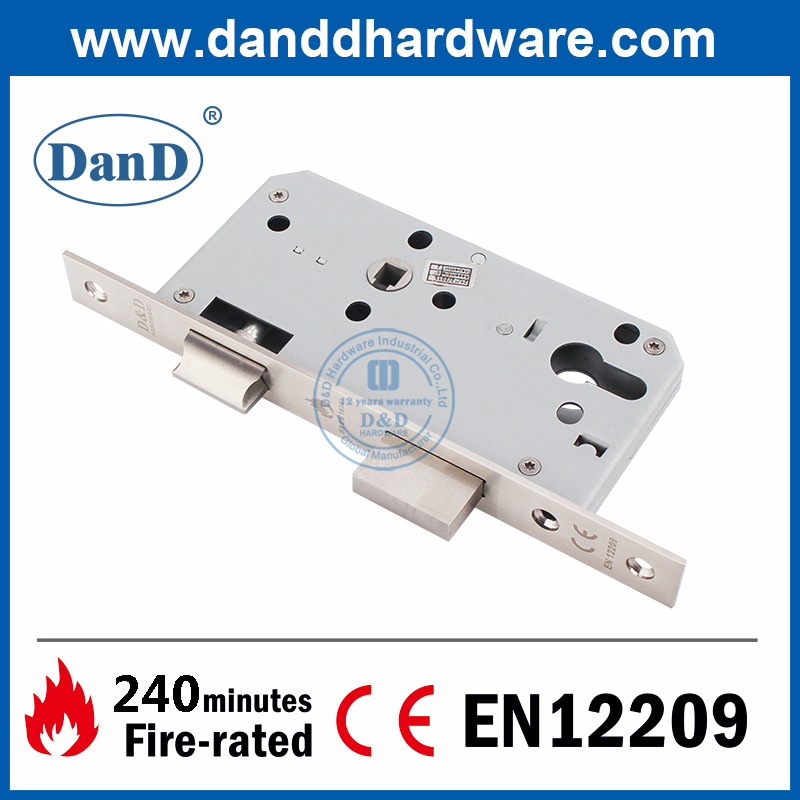

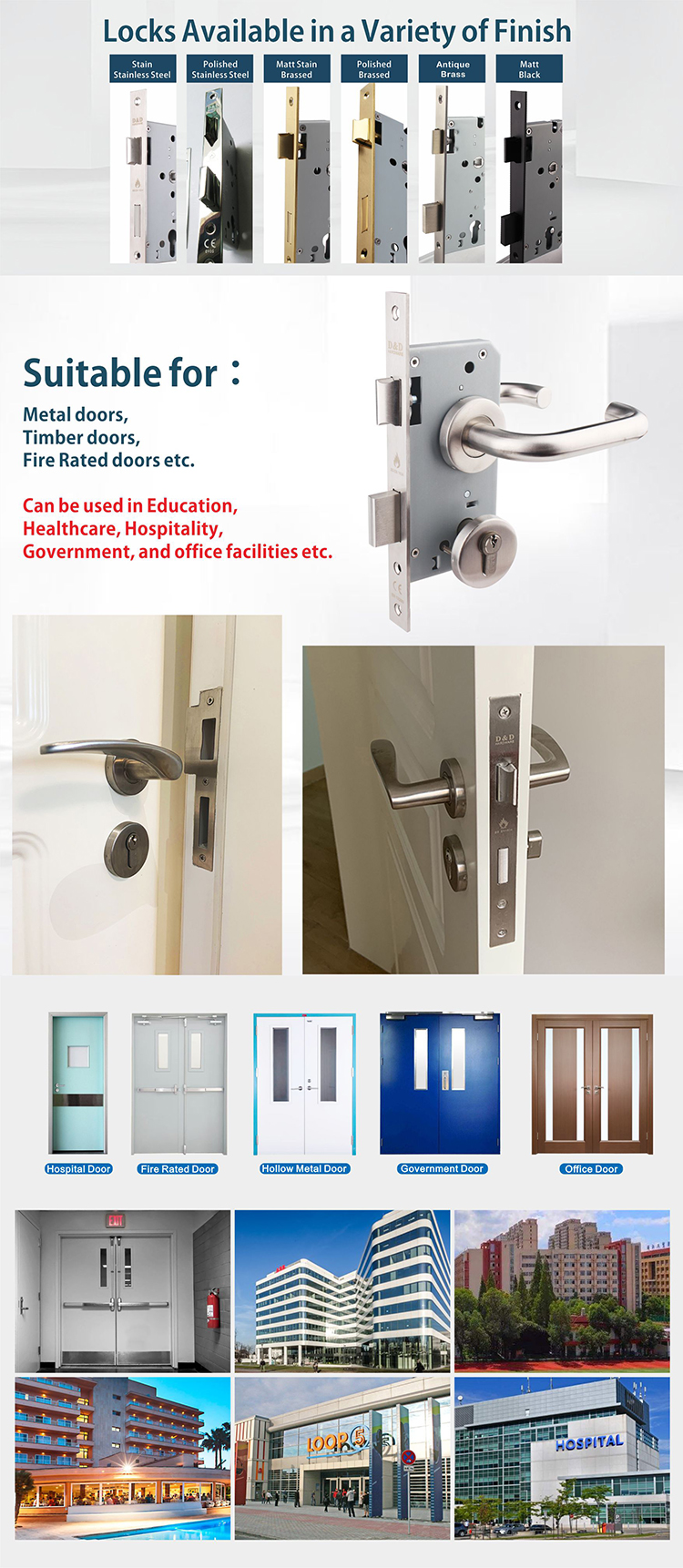

mortise lock 1

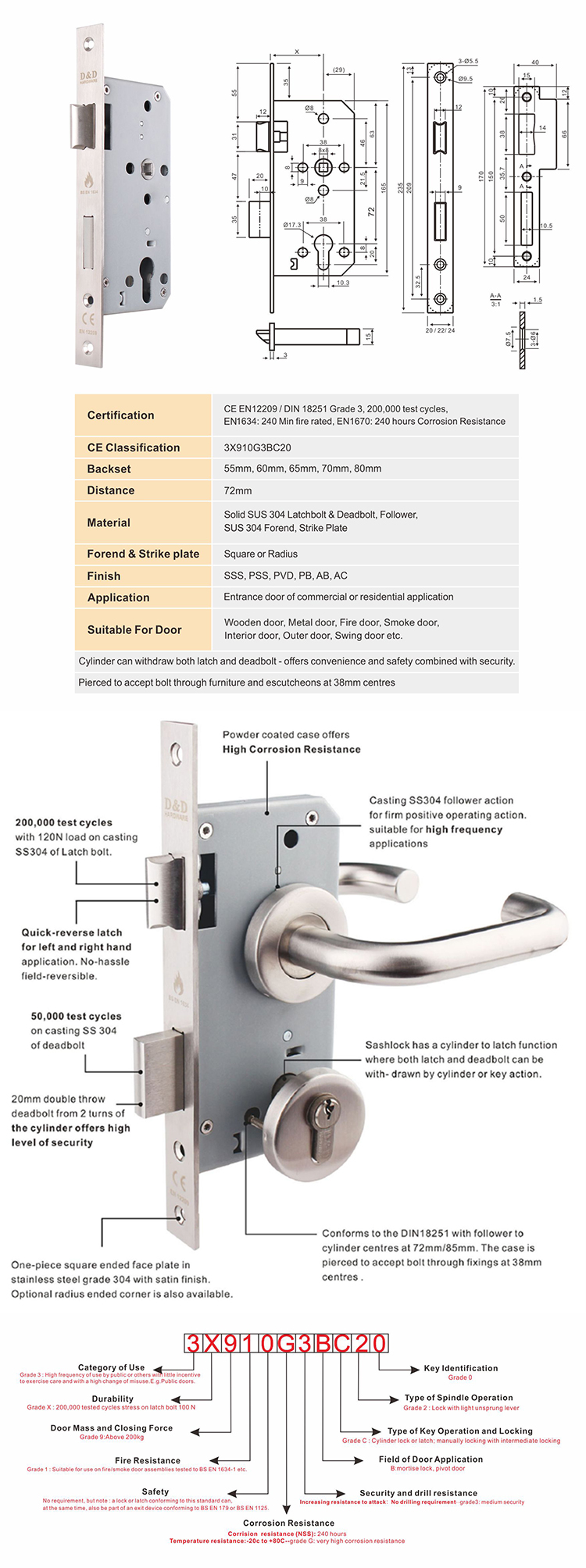

DDML009-fire rated sash lock放在1和2之间

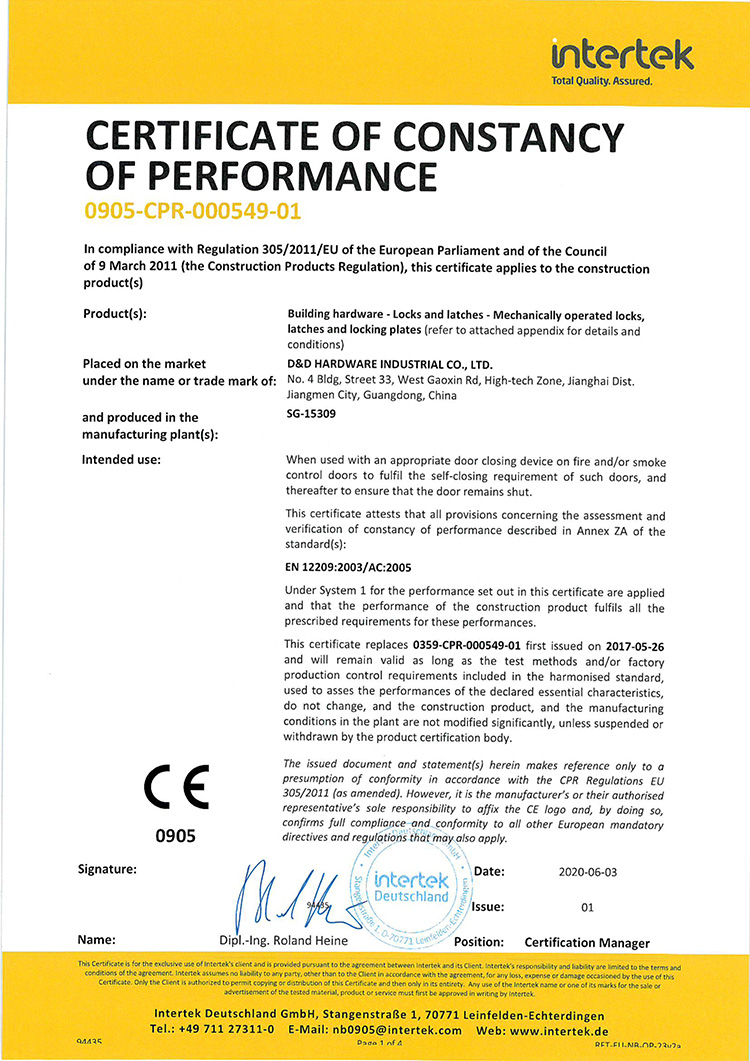

CE EN12209 Lock

mortise lock 2

Packaging & Shipping


Euro Security SS304 CE Mortise Sash Fire Rated Door Lock-DDML009


MOQ

500PCS

Package

1pc /poly bag,white box / color inner box,Standard export Carton .

Sample time

5-7 working days

Production lead time

30-35 days normally

Shipping Port

Jiangmen , China  / Shenzhen , China


Certification & Test

 QC配图

测试机械




Company Information



D&D Hardware Manufacturer.



D&D Product

The products that we offer are tested to the most stringent international industry standards, including BS EN, CE, UL, ANSI and BHMA, Suitable for Education, Healthcare, Hospitality, Residential and Commercial applications.

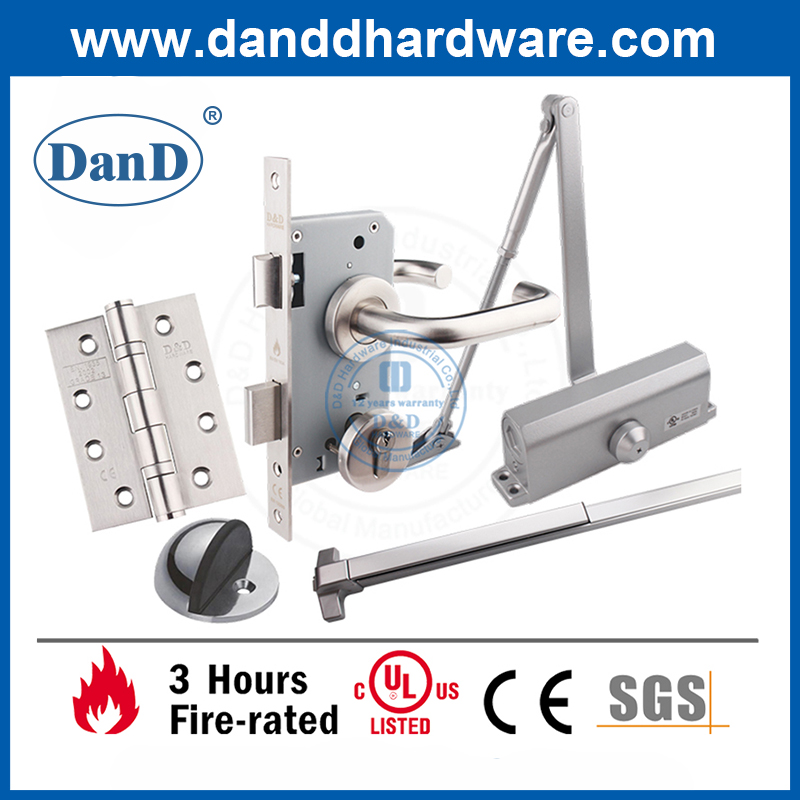

More door hardware items include:
1. Stainless Steel Door Hinge- UL Listed & Fire Rated & CE Certificate
2. Door Locks - CE EN12209 Fire Rated
3. Stainless Steel Door Handles- BS EN 1906
4. Panic Exit Device- UL Listed & CE Certificate
5. Door Controls – CE BS EN 1154
6. Glass Hardware / Bathroom Hardware
