ANSI / BHMA UL GRADE 2 Fire Rated-SS304 Heavy Duty 2BB Butt Hinge-4.5x4.5x3.4mm

ANSI GRADE 2 Certificate, Comply with ANSI/BHMA-156.1: 1,500,000 cycles tested, UL Listed, 3 hours Fire Rated
Availability:
Quantity:
  • DDSS001

  • D&D Hardware

ANSI / BHMA UL GRADE 2 Fire Rated-SS304 Heavy Duty 2BB Butt Hinge-4.5x4.5x3.4mm


SSS304 Metal Door Hinge is a popular hinge, it is durable and easy to use. As a professional hinge supplier in China, we provide customers various quality Ball Bearing Hinge and they apply to different commercial of doors. The Fire Rated 2BB Hinge is one kind of our 2BB Door Hinge. The material of R38013 Door Hinge is stainless steel, so it can keep the original shape very well. It won't turn yellow or rust. The UL List Door Hinge can also keep smooth surface for a long time, not easy to rust and can wear resistant, these two characteristics greatly reduce the possibility of UL Door Hinge become old and bad. The Fire Rated Door Hinge can also keep long-term lubrication, make you convenient to open and close the door. The Stainless Steel Ball Bearing Hinge is smooth and easy to install and use, it can bring you high security and beauty. For further information, please contact us.



Product Overview


The D&D range of architectural hinges is manufactured to the highest engineering standards and designed to offer a high price/ performance ratio.

They have been successfully type tested to all the requirements of BS EN 1935, UL 10C, 3 hours Fire Rate.

Stainless steel leaf, fix/loos /loose non-rising/non-removable pin, ball bearing/washers, flat/ rivet/ball/crown tip and screw provide enhanced durability and security.



Product name ANSI / BHMA UL GRADE 2 Fire Rated-SS304 Heavy Duty 2BB Butt Hinge-4.5x4.5x3.4mm
Product Model  DDSS001-ANSI-4.5"X4.5"X3.4MM-2BB
Product Size

4.5x4.5x3.4mm

Certification
ANSI/BHMA GRADE 2,UL listed
Cycle-test
Grade2: 1500,000 (one million and five hundred thousand cycle test)
UL File Number R38013
Notify Body  UL From U.S.A
UL certificate item

4.0"x3.0"x3.0mm   4.0"x3.5"x3.0mm   4.0"x4.0"x3.0mm

4.5"x4.0"x3.0mm   4.5"x4.5"x3.0mm   4.5"x4.0"x4.6mm

4.5"x4.0"x3.4mm   4.5"x4.5"x3.4mm   4.5"x4.5"x4.6mm
5.0"x3.0"x3.0mm   5.0"x3.5"x3.0mm   5.0"x4.0"x3.0mm
5.0"x4.0"x3.4mm   5.0"x4.5"x3.4mm   4.0"x4.0"x3.4mm
5.0"x4.0"x4.6mm   5.0"x4.5"x4.6mm   5.0"x5.0"x4.6mm

Material Stainless Steel 201, 304 or 316
Fitting Flat tip, ball bearing, fix pin, screws,
Finish


Satin stainless steel, Polished stainless steel, Polished brass

Chrome-plated, Satin chrome-plated, Polished PVD

Standard Strictly according to ANSI/BHMA, Meets ANSI-A156.1 Grade 2
1,500, 000 cycles tested
Suitable for Wooden door, Metal door, Steel door , Fire rated door

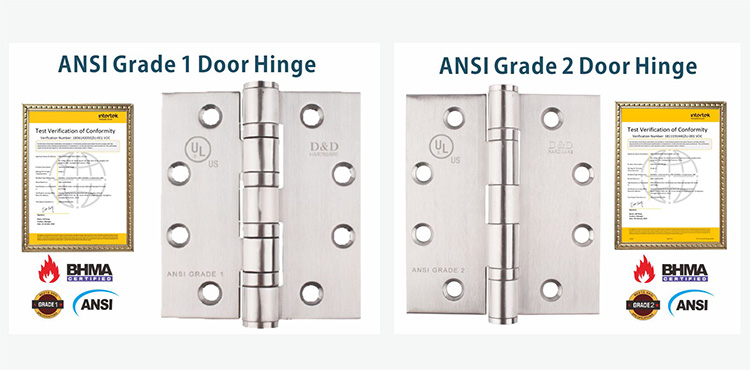

UL Door Hinge 1 no logoANSI Grade 1 Grade 2 Hinge

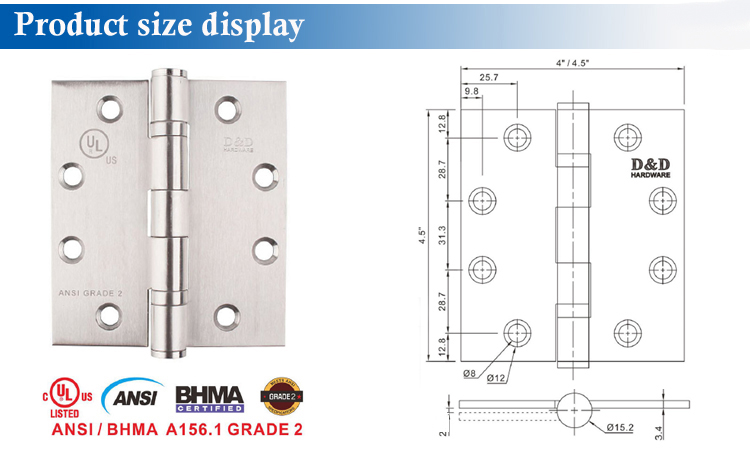

DDSS-ANSI-2 详情

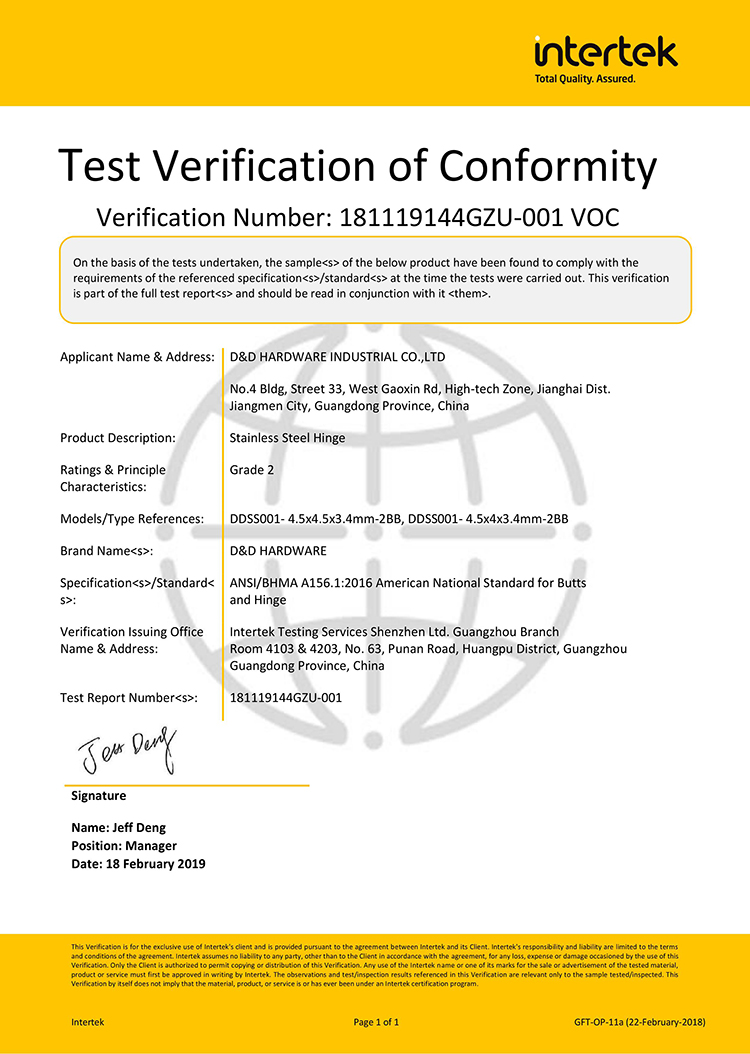

 D&D HARDWARE- ANSI Certificate of GRADE 2 DOOR HINGE

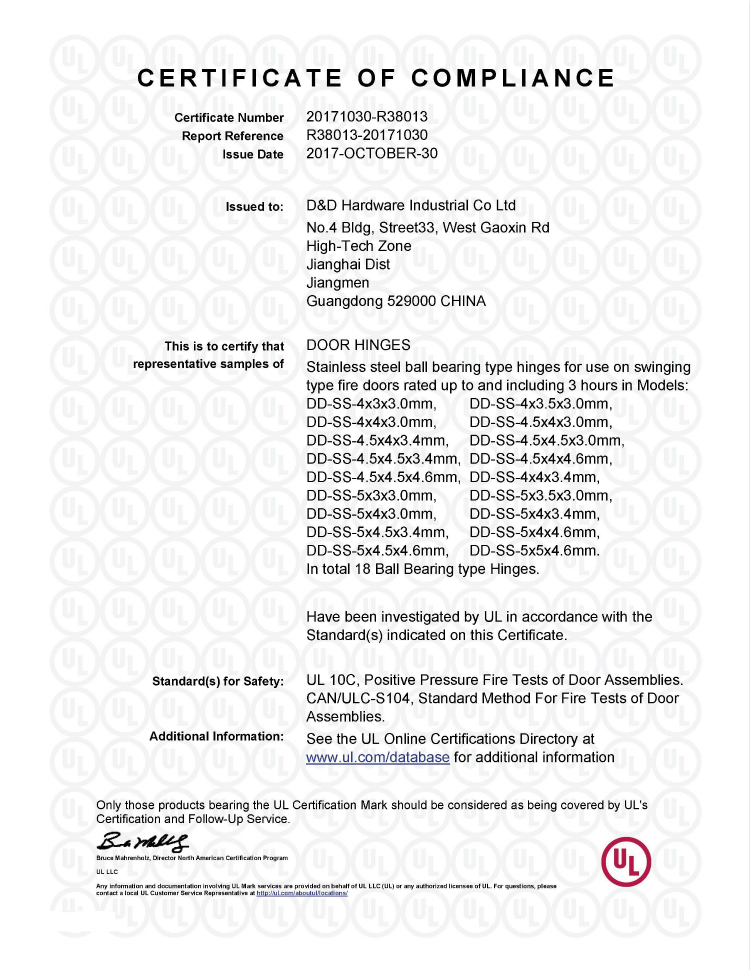

D&D Hardware- UL certification R38013-18 sizes In Total

UL Door Hinge 2 no logo

Packaging & Shipping

ANSI / BHMA UL GRADE 2 Fire Rated-SS304 Heavy Duty 2BB Butt Hinge-4.5x4.5x3.4mm

MOQ  500 Pairs
Package One pair/white box or color box or Blister card in Standard export carton
Sample time 5-7 working days
Production lead time 30-35 days
Shipping Port  Jiangmen , China   / Shenzhen , China .




Certification & Test

 测试机械

Company Information



D&D Hardware Manufacturer.





Our Services



D&D Hardware offers a combination of products to suite the individual Building, meeting not only the Requirements for Design and Function, but also the desired Budget.

More door hardware items include:
1. Stainless Steel Door Hinge- UL Listed & Fire Rated & CE Certificate
2. Door Locks - CE EN12209 Fire Rated
3. Stainless Steel Door Handles- BS EN 1906
4. Panic Exit Device- UL Listed & CE Certificate
5. Door Controls – CE BS EN 1154
6. Glass Hardware / Bathroom Hardware
