ANSI/BHMA Standard Weight Stainless Steel 304 Door Hinge-DDSS001-ANSI-2

ANSI GRADE1 Certificate, Comply with ANSI/BHMA-156.1:2,500,000 cycles tested,UL Listed,UL 10C,3 hours Fire Rated
Availability:
Quantity:
  • DDSS001-ANSI- 2

  • D and D Hardware

  • Stainless Steel

  • ANSI Grade 2 / UL Listed

  • Jiangmen /Guangzhou / Shenzhen , China

  • T/T,L/C,D/P, Western Union

  • 200,000/Month

ANSI/BHMA Standard Weight Stainless Steel 304 Door Hinge-DDSS001-ANSI-2


Door Hinge Types

Hinges Types


ANSI Grade 2 Standard Weight Door Hinge is a popular hinge, it is durable and easy to use. As a professional hinge supplier in China, we provide customers various quality door hinge and they apply to different commercial of doors. The fire door hinge is one kind of our door hinge. The material of heavy duty hinge is stainless steel, so it can keep the original shape very well. It won't turn yellow or rust. The ANSI Grade 1 door hinge can also keep smooth surface for a long time, not easy to rust and can wear resistant, these two characteristics greatly reduce the possibility of fire rated hinge become old and bad. The door hinge can also keep long-term lubrication, make you convenient to open and close the door. The BHMA/ANSI Grade 2 door hinge is smooth and easy to install and use, it can bring you high security and beauty. For further information, please contact us.


ANSI Grade 1 and Grade 2 Door Hinge


Product Description


Product  Name

ANSI/BHMA Standard Weight Stainless Steel 304 Door Hinge-DDSS001-ANSI-2

Product  Model

DDSS001-ANSI-2-SUS304

Certification

ANSI Grade 2, UL Listed / UL10C

Cycle-test

2500,000   (two million and five hundred thousand cycle test)

UL File Number

R38013

Notify Body

UL From U.S.A

UL Certificate Item

4.0"x3.0"x3.0mm     4.0"x3.5"x3.0mm     4.0"x4.0"x3.0mm

4.5"x4.0"x3.0mm     4.5"x4.5"x3.0mm     4.5"x4.0"x4.6mm

4.5"x4.0"x3.4mm     4.5"x4.5"x3.4mm     4.5"x4.5"x4.6mm
5.0"x3.0"x3.0mm     5.0"x3.5"x3.0mm     5.0"x4.0"x3.0mm

5.0"x4.0"x3.4mm     5.0"x4.5"x3.4mm     4.0"x4.0"x3.4mm
5.0"x4.0"x4.6mm     5.0"x4.5"x4.6mm     5.0"x5.0"x4.6mm

Material

Stainless Steel 201, 304 or 316

Fitting

Flat tip, ball bearing, fix pin, screws

Finish

SSS , PSS , PVD , PB, AB , AC, SC, PC, SB, MB

Suitable for

Wood door, Metal door,  Steel door , Fire rated door etc.

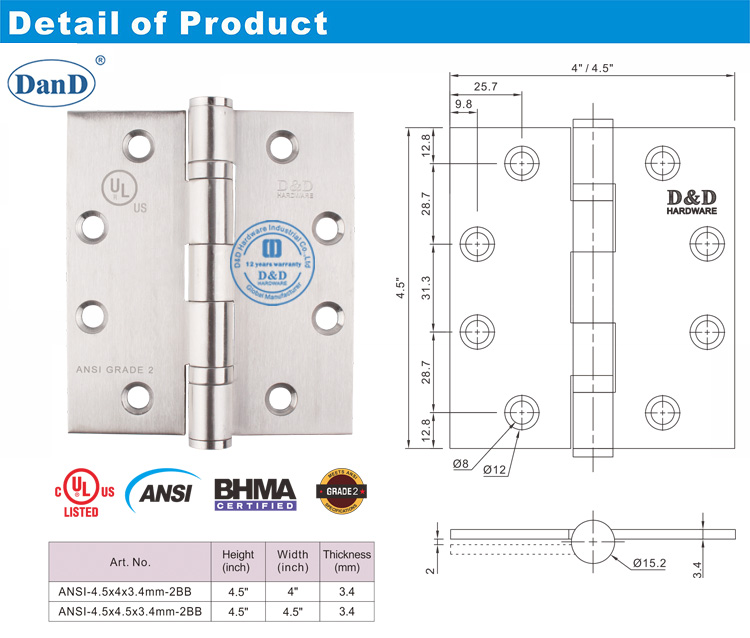

ANSI Grade 2 Door Hinge



Packaging & Shipping


ANSI/BHMA Standard Weight Stainless Steel 304 Door Hinge-DDSS001-ANSI-2


MOQ

500 Pairs

Package

One pair/white box or color box or Blister card in Standard export carton

Sample Time

5-7 working days

Production Lead Time

30-35 days

Shipping Port

Jiangmen , China / Shenzhen , China .

Different Types Door HingesUL Fire Rated Door Hinge


Contact us

联系

D&D HARDWARE- ANSI Certificate of GRADE 2 DOOR HINGE

UL Hinge Certification-D and D

D and D Door Hardware Certification


D and D Door Hardware Testing Quality

D&D Hardware offers a combination of products to suite the individual Building, meeting not only the Requirements for Design and Function, but also the desired Budget.

More door hardware items include:
1. Stainless Steel Door Hinge- UL Listed & Fire Rated & CE Certificate
2. Door Locks - CE EN12209 Fire Rated
3. Stainless Steel Door Handles- BS EN 1906
4. Panic Exit Device- UL Listed & CE Certificate
5. Door Controls – CE BS EN 1154
6. Glass Hardware / Bathroom Hardware

QC System







D and D Hardware Manufacturer

Contact: David Jian

Mobile:0086-139 2903 7292
E-mail: David@dndhardware.com, sales@dndhardware.com

Jobby Zhang
Mobile:0086-137 2599 9617
E-mail: jobby@dndhardware.com

D&D HARDWARE INDUSTRIAL CO.,LTD
ADD: No.4 Bldg,Street 33,West Gaoxin Rd,High-tech Zone, Jianghai Dist. Jiangmen City,Guangdong,China (Postcode:529000)
Https://www.danddhardware.com
TEL: +86-750-3652251, 3856396
FAX: +86-750-3856395
