In the realms of architecture, high-end furniture, and secure installations, the door hinge is far more than a simple mechanical pivot; it is a critical component that dictates functionality, security, and aesthetic integrity. While often overlooked, the hinge is the workhorse that ensures smooth operation day in and day out. For applications where performance, safety, and a clean visual line are non-negotiable, the EN1634 Adjustable Concealed Hinge stands as the pinnacle of engineering excellence. This article explores what this certification means, the technology behind these hinges, and the crucial differences between 2D Adjustable Concealed Hinge and 3D Adjustable Concealed Hinge systems.
First and foremost, EN1634 is not a brand or a type of hinge. It is a European Standard titled "Fire resistance and smoke control tests for door and shutter assemblies, openable windows and elements of building hardware." Specifically, for hinges, compliance with EN1634 signifies that the hinge assembly has been rigorously tested and certified to maintain its integrity for a specified period (e.g., 30, 60, 90, 120, or 132 minutes) during a fire. This means the hinge will not fail, deform, or compromise the door leaf's ability to act as a barrier against fire and smoke.
Therefore, an EN1634 Adjustable Concealed Hinge is a high-performance, fully concealed hinge that has passed these critical fire resistance tests. It is the mandatory hardware for fire-rated doors in commercial, industrial, and multi-residential buildings across Europe and many other regions that adopt these standards. Its "adjustable" nature is what makes it particularly valuable for these demanding applications, allowing for perfect alignment even after the stresses of a fire test or routine settling of a building.
The genius of modern Concealed Hinges lies in their post-installation adjustability. Traditional hinges, once screwed in, offer little to no room for error correction. A misaligned door often requires shimming, refilling, and re-screwing—a tedious and damaging process. Adjustable concealed hinges solve this problem elegantly. There are two primary types of adjustability:
A 2D Adjustable Conceaded Hinge allows for correction in two planes:
Vertical Adjustment (Height): This enables the installer to raise or lower the door slightly to ensure an even gap along the top or to align with adjacent doors.
Horizontal Adjustment (Side-to-Side): This allows the door to be shifted left or right, ensuring consistent and parallel reveals between the door edge and the frame.
The 2D system is incredibly effective for achieving a perfect fit during initial installation and for compensating for minor shifts in the door frame over time. It is a common and highly valued feature for both standard and fire-rated Hidden Door Hinges.

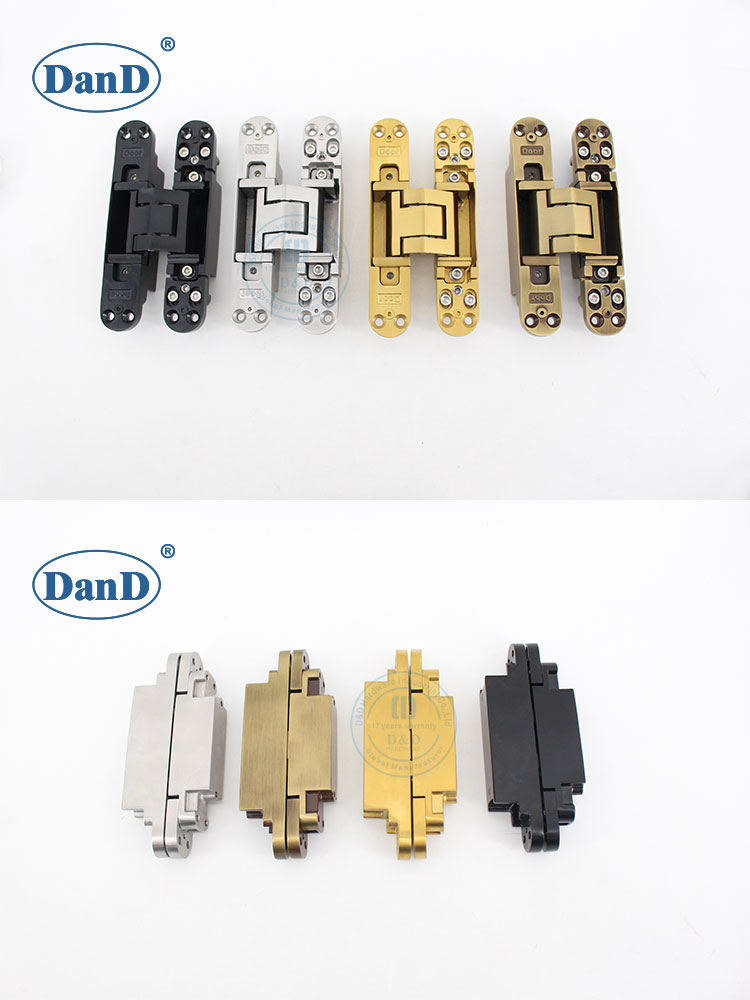

The 3D Adjustable Concealed Hinge is the superior system, offering all the benefits of a 2D hinge but with a crucial third dimension of adjustment:
Vertical Adjustment (Height)
Horizontal Adjustment (Side-to-Side)
Depth Adjustment (In/Out): This is the most critical addition. It allows the installer to pull the door closer to the frame or push it further away. This fine-tunes the compression of the door seal (essential on fire and smoke doors) and ensures the door sits perfectly flush with the frame without binding.
The 3D system is the ultimate tool for precision. It is indispensable for ensuring that a heavy fire-rated door maintains perfect contact with its intumescent seals around the entire perimeter, a requirement for passing fire and smoke tests. This comprehensive adjustability also makes it ideal for dealing with older buildings where frames may be out of plumb.
The term Hidden Door Hinges is often used interchangeably with Concealed Hinges, and for good reason. Their primary aesthetic benefit is their invisibility when the door is closed. This creates a clean, minimalist, and uninterrupted surface, which is a cornerstone of modern design. There are no visible knuckles, pins, or fasteners, which enhances the door's appearance and eliminates potential points for snagging or vandalism.
Beyond aesthetics, concealed hinges offer significant functional advantages:
Security: Most Concealed Hinges are engineered with anti-leverage properties. Since the hinge mechanism is hidden within the door and frame, it is impossible to access the pivot pin from the outside, making the door extremely difficult to force open by attacking the hinges.
Durability: Manufactured from high-grade steel and often featuring ball-bearing mechanisms, these hinges are built to withstand the weight of heavy doors and thousands of cycles without sagging or failing.
Cleanability: The absence of external components makes cleaning the door and frame area much simpler, a key benefit in hygienic environments like hospitals and laboratories.
The EN1634 Adjustable Concealed Hinge represents the fusion of form, function, and life safety. It is a product where engineering precision meets rigorous certification standards. The choice between a 2D Adjustable Concealed Hinge and a 3D Adjustable Concealed Hinge ultimately depends on the application's specific requirements for precision, the weight of the door, and the critical need for depth adjustment to activate sealing systems. Whether for a sleek, minimalist interior door or a critical fire-rated barrier, these Hidden Door Hinges provide the invisible strength and adjustable precision that modern architecture demands, ensuring that doors perform flawlessly and look impeccable for years to come. Investing in certified, adjustable Concealed Hinges is an investment in the safety, longevity, and beauty of any building project.
