How to Adjust Hidden Door Hinges？

Hidden door hinges, also known as concealed door hinges, are a popular choice for modern interior design due to their minimalist and seamless appearance. Unlike traditional hinges, these components are completely invisible when the door is closed, providing a clean and uninterrupted aesthetic. However, their concealed nature can make adjustment seem daunting. Properly aligning a door using invisible hinges requires understanding the type of hinge installed and following a systematic approach. This guide will walk you through the steps to adjust common types of hidden hinges, including the 3D adjustable door hinge and the 2D door hinge, along with special considerations for heavy duty hidden hinges and the 180 degree hidden door hinge.

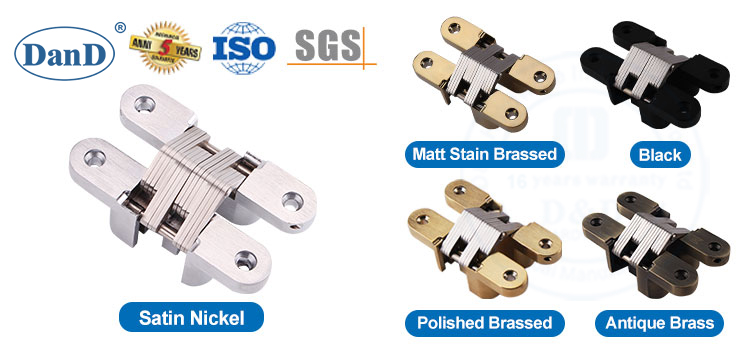

Understanding the Types of Hidden Hinges

Before beginning any adjustments, it’s important to identify the type of hinge you are working with. The most common types include:

• 2D Door Hinge: Allows adjustments in two dimensions—typically inboard/outboard (depth) and up/down (height). These are simpler but may require more manual shimming if the door is significantly misaligned.




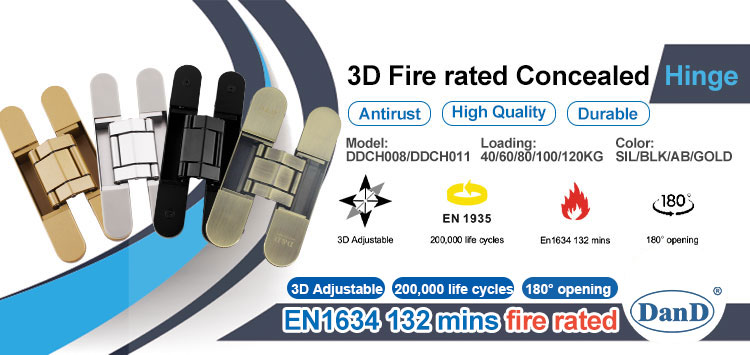

• 3D Adjustable Door Hinge: Offers more flexibility, allowing adjustments in three planes: height, depth, and side-to-side (lateral). This type is especially useful for fine-tuning door positioning without disassembling the hardware.




• Heavy Duty Hidden Hinges: Designed for larger or heavier doors, such as entry doors or those made of solid wood or metal. These often feature more robust adjustment mechanisms but follow similar principles.




• 180 Degree Hidden Door Hinge: Allows the door to swing open a full 180 degrees, which is useful in spaces where maximum access is required. Adjustments may involve limiting the swing or ensuring clearance.




Tools You Will Need

• Screwdrivers (Phillips and flathead)

• Allen keys (hex keys) – often provided with the hinge

• A level

• A pencil for marking

• Soft mallet (optional)

• Shims (for 2D hinges if needed)

Step-by-Step Adjustment Guide

1. Identify the Adjustment Screws

Most hidden hinges include set screws or grub screws accessible from the side or front of the hinge arm when the door is open. In a 3D adjustable door hinge, there are typically three adjustment points:

• One for height (vertical adjustment)

• One for depth (in/out adjustment)

• One for lateral (side-to-side) adjustment




A 2D door hinge usually has two adjustment points—for height and depth.

2. Adjust the Door Height

If the door is dragging on the floor or sitting too high, locate the height adjustment screw. This is often vertical or marked in the manufacturer’s instructions. Turn the screw clockwise to raise the door or counterclockwise to lower it. Make small adjustments—quarter turns at a time—and check the movement.

3. Adjust the Depth

If the door is too tight or too loose against the frame, use the depth screw. This moves the door closer to or farther from the jamb. Clockwise turns usually bring the door inward, while counterclockwise moves it outward. This is crucial for ensuring proper latching and avoiding friction.

4. Lateral Adjustment (for 3D Hinges)

For doors that are misaligned horizontally (e.g., the top or bottom is not flush with the frame), use the lateral adjustment. This shifts the door left or right without affecting the other settings.

5. Testing and Fine-Tuning

After each adjustment, close the door slowly and check the fit. Use a level to ensure the door is plumb. For heavy duty hidden hinges, take extra care: heavier doors may require more turns for the same effect, and adjustments should be made incrementally to avoid strain on the hardware.

6. Special Case: 180 Degree Hidden Door Hinge

These hinges may have an additional adjustment to control the opening angle or to ensure the door doesn’t swing too violently. Refer to the manufacturer’s guidelines, as some models include a stop mechanism or damping adjustment.

Common Issues and Solutions

• Door Won’t Latch: Usually caused by depth misalignment. Adjust the depth screw to move the door closer to the strike plate.

• Door Sticks or Rubs: Check for height or lateral misalignment. Use the appropriate adjustment to center the door in the frame.

• Hinge Feels Loose: Ensure all screws are tight. If the problem persists, the hinge may be worn, especially in heavy duty hidden hinges under constant stress.

Final Tips

• Always refer to the manufacturer’s instructions, as mechanisms can vary.

• Avoid over-tightening adjustment screws, which can strip the threads.

• For doors with multiple hinges, adjust the top hinge for side-to-side movement and the bottom for height if possible.

• If shims are needed (common with 2D hinges), use thin plastic or metal shims behind the hinge plate to avoid compromising the invisible look.

With patience and careful adjustments, your hidden door hinge system will operate smoothly and maintain the sleek, modern aesthetic you desire. Whether you’re working with a standard concealed door hinge or a specialized 180 degree hidden door hinge, understanding the adjustment process is key to ensuring functionality and longevity.
